Project Description
Overview

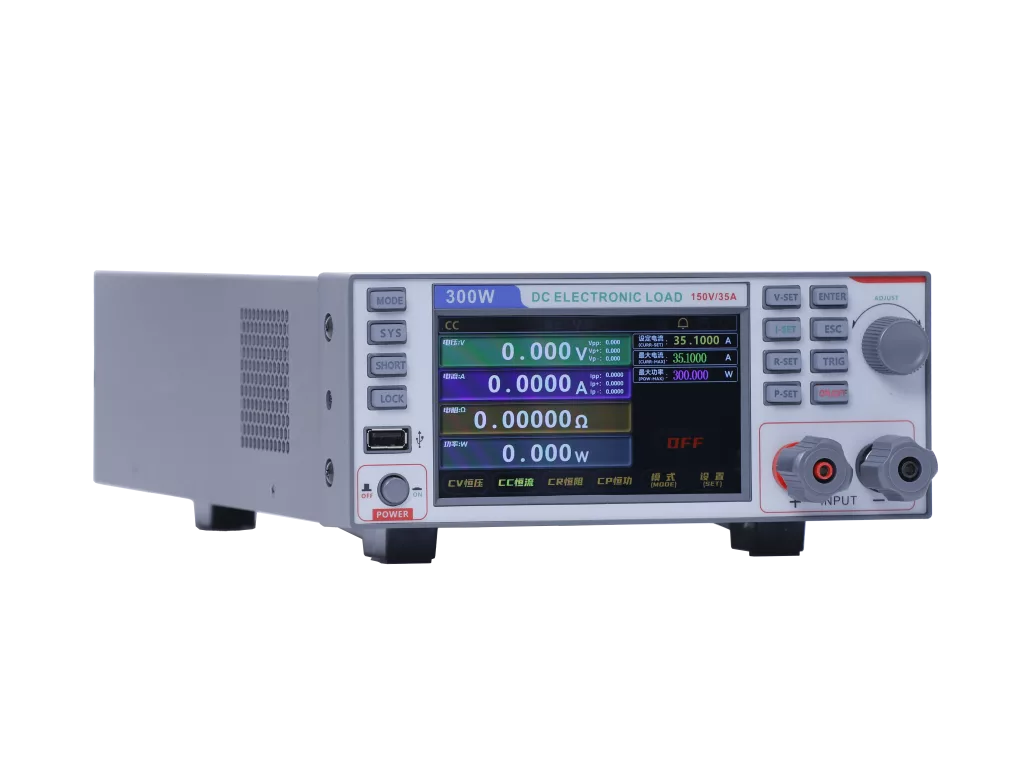

The HT9812-300W-150V-35A programmable DC electronic load supports four mainstream operation modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR) and Constant Power (CP). It is also equipped with abundant advanced test functions including auto-test, dynamic test, over-current test and timing sequence test. Equipped with a brand-new large touch screen, it solves the pain points of complicated parameter configuration and cumbersome operation of traditional electronic loads. The collaborative design of touch screen, physical buttons and adjustment knob allows users to quickly set complex test procedures and parameters without frequent page switching, greatly improving test efficiency. The intuitive display interface effectively avoids parameter setting errors. Standard RS232 and RS485 communication interfaces are pre-installed for easy integration into various automated test systems. An external IO trigger port is also reserved for connecting external trigger signals.
FEATURES
- Four operation modes: CC, CV, CR, CP
- Auto-test & list sequential test functions
- Dynamic mode up to 50kHz
- High measurement resolution: 0.1mV for voltage, 0.1mA for current
- Dedicated battery test function
- OCP test & remote sense measurement function
- Built-in short-circuit simulation function
- Special CR mode dedicated for LED testing
- Voltage & current ripple measurement capability
- Parameter memory retention after power-off
- Storage capacity for 100 groups of test parameters
- Standard RS232 & RS485 communication ports
SPECIFICATIONS
| Parameter | 300W-150V-35A | ||
|
Nominal Value |
Power | 300W | |
| Voltage | 0-15V | 0-150V | |
| Current | 0-3.5A | 0-35A | |
| Min op volt | 0.3A at 3.5A
3V at 35A |
||
|
CV Mode |
Range | 0-15V | 0-150V |
| RES. | 0.1mV | 1mV | |
| Accuracy | ±(0.05%+0.025%FS) | ||
|
CC Mode |
Range | 0-3.5A | 0-35A |
| RES. | 0.01mA | 0.1mA | |
| Accuracy | ±(0.05%+0.05%FS) | ||
|
CR Mode |
Range | 0.047Ω~7.5KΩ | |
| RES. | 16bit | ||
| Accuracy | （0.1+0.01R）% | ||
|
CW Mode |
Range | 300W | |
| RES. | 1mW | 10mW | |
| Accuracy | ±(0.1%+0.2%FS) | ||
|
DYNA |
Time | 10uS-50S | |
| Accuracy | 2uS | ||
| Slope | 0.0003-3A/uS | ||
| MEAS RANGE | |||
|
VOLT MEAS |
Range | 0-15V | 0-150V |
| RES. | 0.1mV | 1mV | |
| Accuracy | ±(0.025%+0.025%FS) | ||
|
CURR MEAS |
Range | 0-3.5A | 0-35A |
| RES. | 0.01mA | 0.1mA | |
| Accuracy | ±(0.05%+0.05%FS) | ||
|
POW MEAS |
Range | 300W | |
| RES. | 1mW | 10mW | |
| Accuracy | ±(0.1%+0.2%FS) | ||
| PROTECT RANGE | |||
| OPP | ≈315W | ||
| OCP | ≈3.5A | ≈35A | |
| OVP | ≈15.75V | ≈157.5V | |
| OTP | ≈85℃ | ||
|
SHORT |
CC | ≈3.5A | ≈35A |
| CV | ≈0V | ||
| CR | ≈80mΩ | ||
| INP RES | 150KΩ | ||
| Size&Weight | |||
| SIZE(W*H*D) | 215mm*103mm*390mm | ||
| Weight | 4.3kg | ||

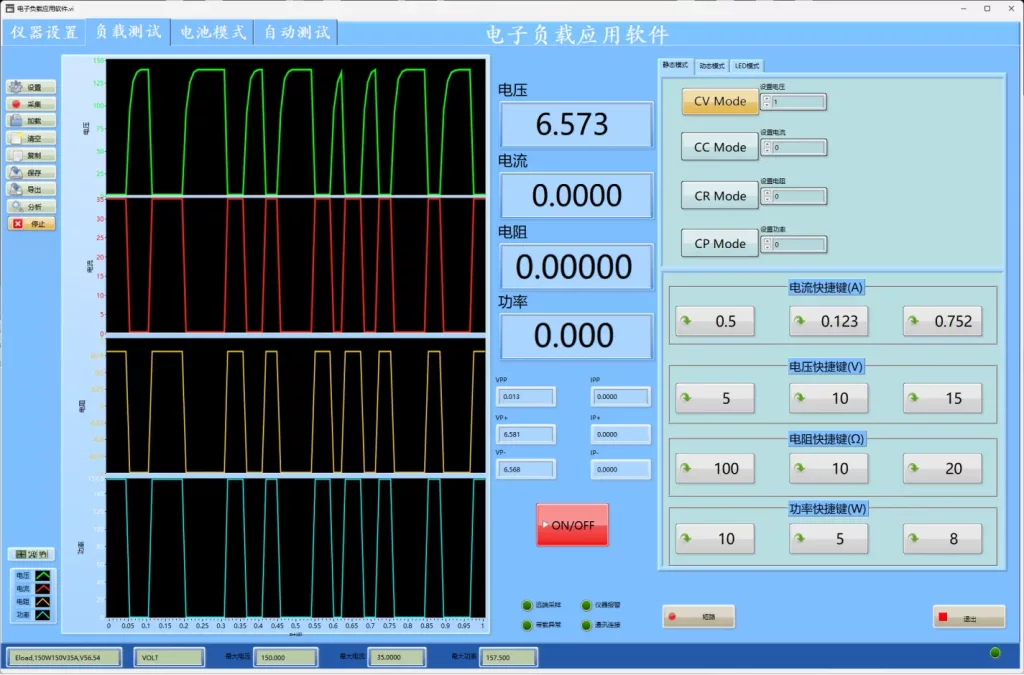

CONTROL SOFTWARE

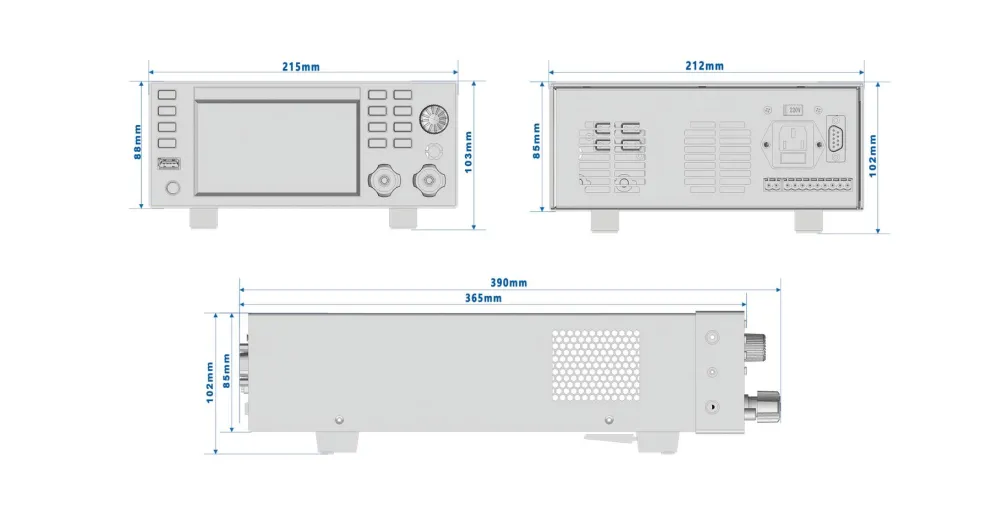

SIZE OF ELECTRONIC LOAD
