Project Description
Used for testing photovoltaic module junction boxes, it can automatically identify the tested components
- HT9960 photovoltaic junction box meter is tailor-made by Hopetech for PV junction box electrical characteristics testing requirements.
- It is used to test 10W~400W junction box diode (2~8 diode) forward voltage drop VF, the reverse leakage current IR, reverse voltage VR, conduction DC resistance R, and the temperature TC parameters.
- HT9960 meter is widely used in the junction box manufacturers and component manufacturers.
- Using the latest switch programmable power technology, HT9960 has a powerful function but a small size.

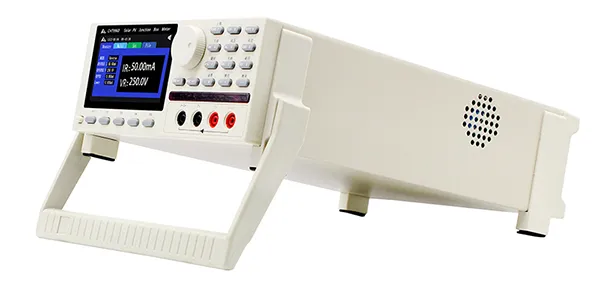

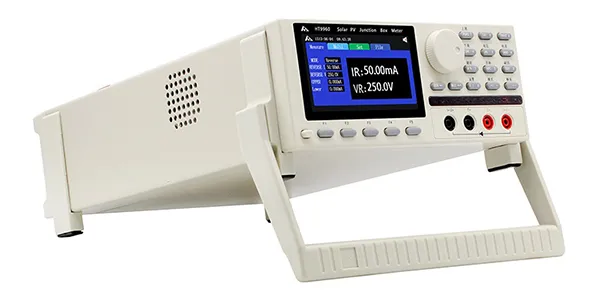

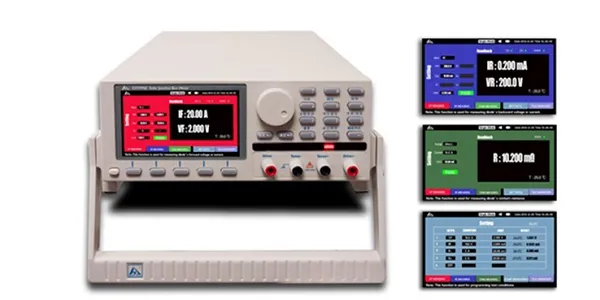

- 4.3-inch TFT color LCD display, support U disk to save data

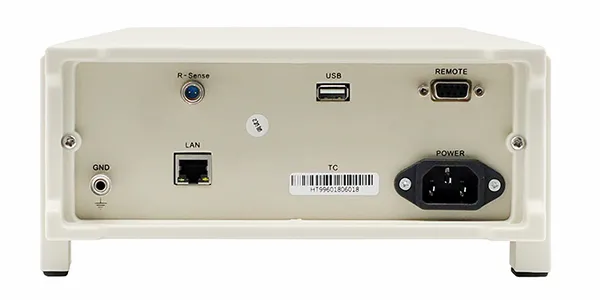

- Standard RS232C and HANDLER interface, HT9960 can be used in automated measurements application.
- PLC interface, production line sorting
- File management, USB storage
- Switch power supply design, small size and multifunctional
- Standard I/O and LAN
- VF/insulation/leakage current/temperature/low resistance comprehensive testing
Used for testing PV module junction boxes, it can automatically identify the tested components and test multiple parameters of the junction box only one time.
| HT9960 PV Junction Box Meter | |||
| Display | 4.3-inch TFT LCD | ||
| Test Parameters | Forward conduction voltage drop
Reverse voltage Reverse leakage current Conducting DC resistance (VF/VR/IR/R/TC) |
||
| VF Test | Current Set | Range | 0~30 A |
| Accuracy | 1% | ||
| Current Read-Back | Range | 0~30 A | |
| Accuracy | 1% | ||
| Voltage Test | Range | 0~10 V | |
| Accuracy | 1% | ||
| IR/VR Test | Current Set | Range | source is programmable within 0~100mA |
| Accuracy | 1% | ||
| Voltage Set | Range | source is programmable within 0~250 V | |
| Accuracy | 0.50% | ||
| IR | Accuracy | 1% | |
| VR | Accuracy | 1% | |
| Low IR Test | Range | 1mΩ~10Ω | |
| Accuracy | 1% | ||
| Temperature Test | Range | -10°C~200°C | |
| Accuracy | 1%±1°C | ||
| Other Functions | VF-°C or VR-IR graphic scanning | ||
| Binout Function | binout with light and voice prompt | ||
| Complex Test | test steps can be programmed | ||
| File Storage | U disk (Max 2G) | ||
| Interface | I/O, LAN | ||
| Power Supply | Voltage:90V AC-250V AC Frequency:47Hz-400 Hz | ||
| Power Maximum | 500VA | ||
| Dimensions | 358mm×249mm×102mm（L*W*H） | ||
| Weight | 3.5kg | ||
