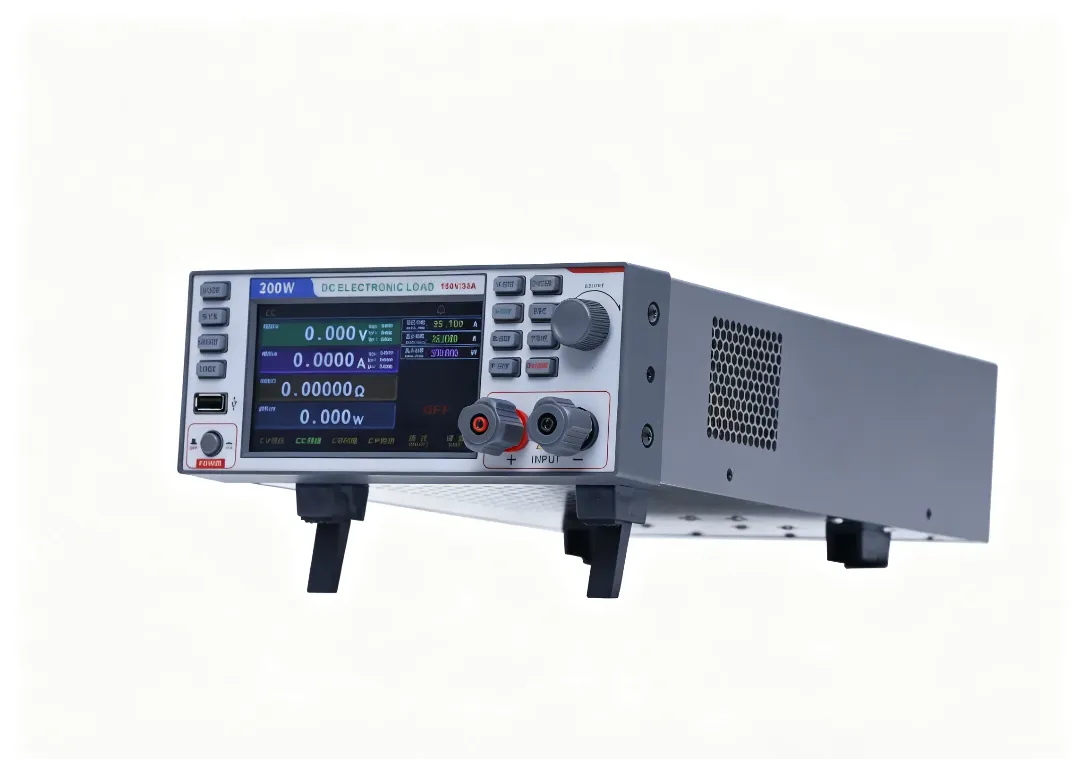

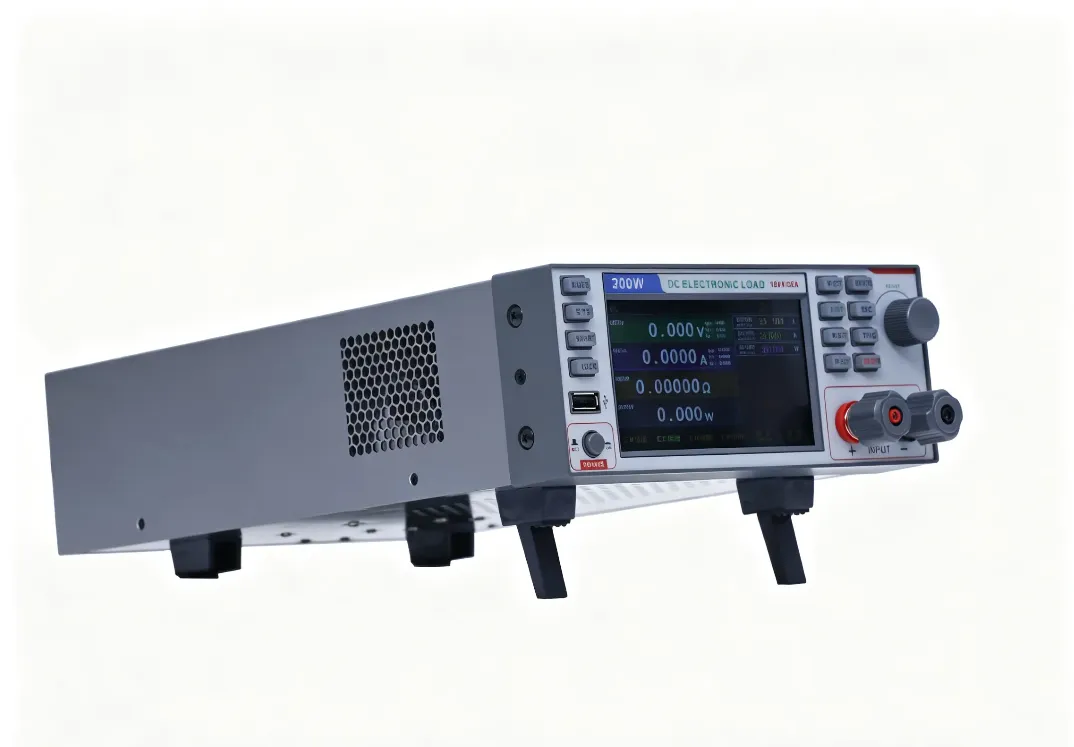

HT9811 Programmable DC Electronic Load 200W-150V-35A

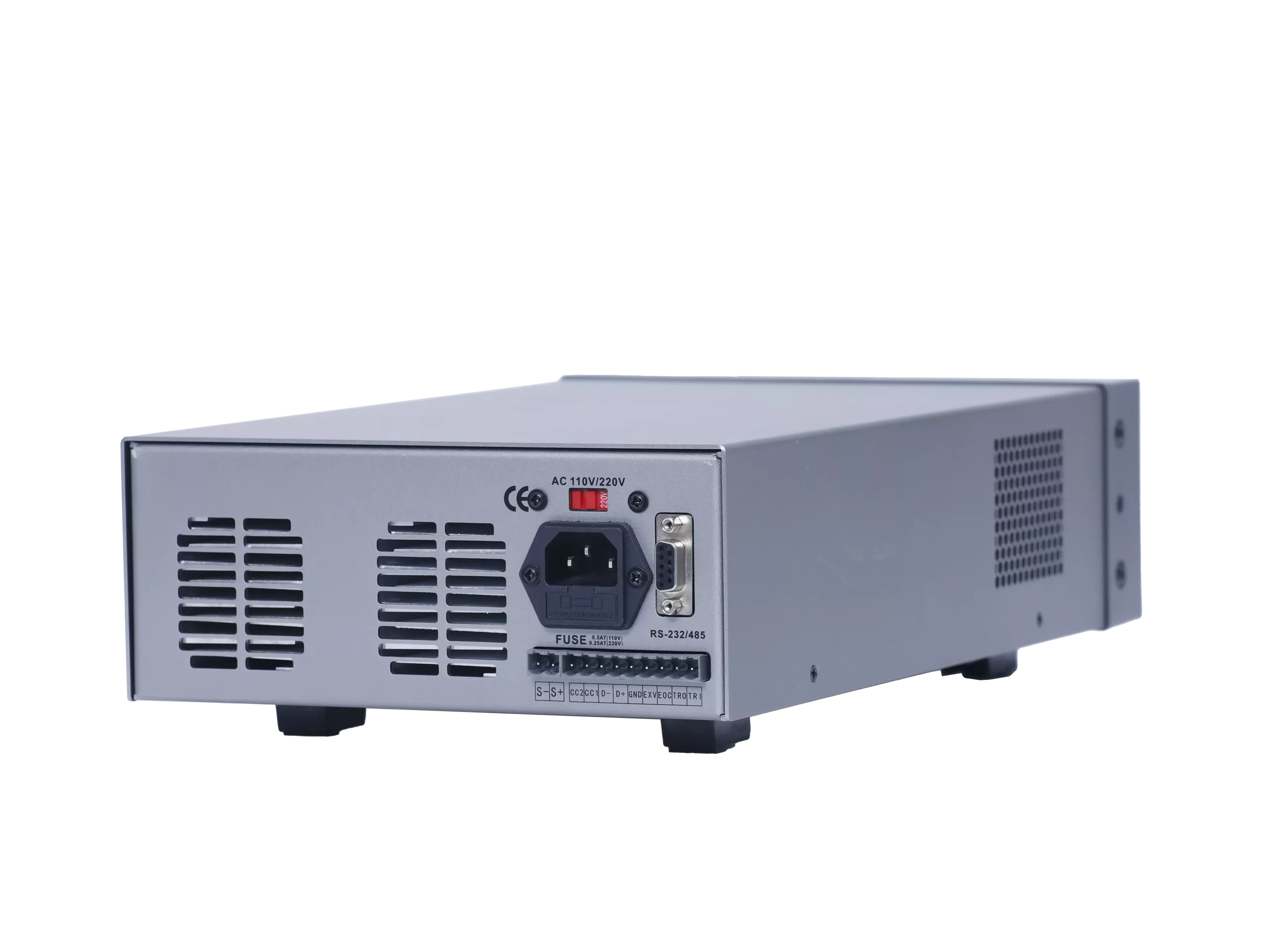

The HT9811 programmable DC electronic load is equipped with four core operating modes: constant current (CC), constant resistance (CR), constant voltage (CV) and constant power (CP). It also integrates advanced functions including auto-test, dynamic test, over-current test and timing sequence test. Featuring a new large touchscreen combined with physical keys and an adjustment knob, the device eliminates the complexity of traditional parameter configuration and cumbersome operation. Operators can quickly set complex test flows and parameters without frequent interface switching, boosting overall test efficiency. The intuitive display interface effectively prevents setup errors. Standard RS232 and RS485 communication ports are built-in for seamless integration into various automated test equipment (ATE) systems. An external IO trigger interface is also reserved for external signal linkage.

1. Four core operating modes: CC / CV / CR / CP
2. Auto-test & list sequence test functions
3. Dynamic mode up to 50kHz
4. High measurement resolution: 0.1mV for voltage, 0.1mA for current
5. Dedicated battery test function
6. OCP (Over-Current Protection) test & remote sense measurement
7. Built-in short-circuit simulation function
8. CR mode dedicated for LED testing
9. Voltage & current ripple measurement capability
10. Power-off parameter memory retention
11. Storage capacity for 100 groups of test parameters
12. Standard RS232 & RS485 communication interfaces
