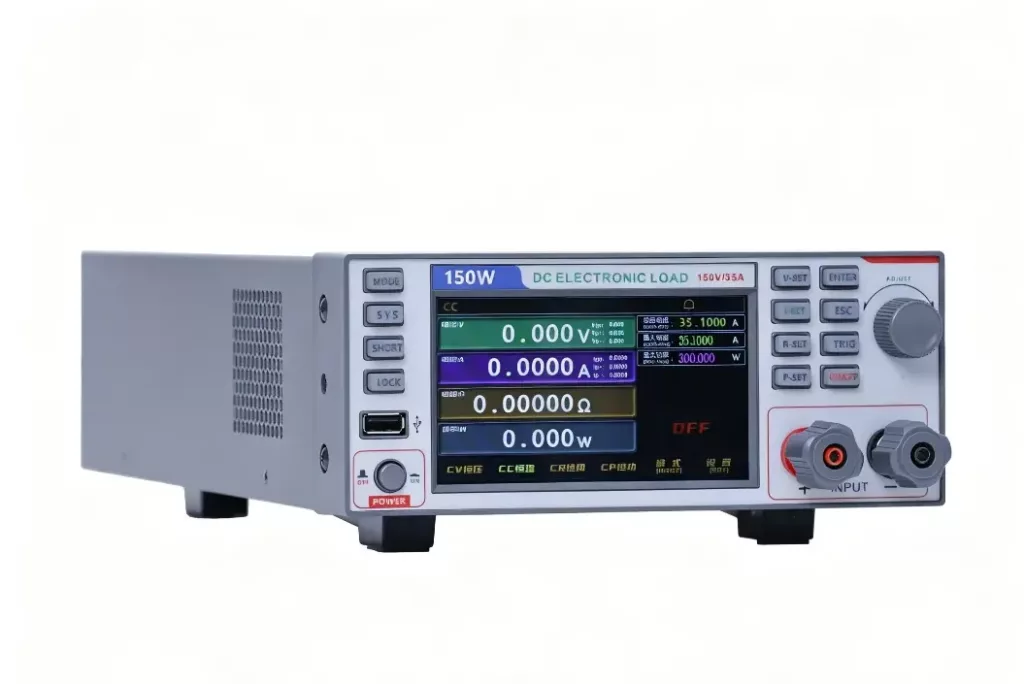

150W-150V-35A Programmable DC Electronic Load

OVERVIEW
The HT9810-150W-150V-35A Programmable DC Electronic Load supports four standard operation modes: Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV) and Constant Power (CP). It is also equipped with abundant advanced functions including Auto Test, List Sequential Test, Dynamic Test and Over-Current Test.
Adopting a brand-new large touch screen combined with physical buttons and adjustment knob, the equipment eliminates complicated parameter setup and cumbersome operation. Users can rapidly configure complex test flows and parameters without frequent page switching, boosting testing efficiency and avoiding setup errors thanks to intuitive interface display.
Standard built-in RS232 & RS485 communication ports allow seamless integration into various automatic test systems. An external IO trigger interface is also available for external signal connection.
FEATURES
Four operation modes: CC, CV, CR, CP
Auto test & list sequential test functions
Dynamic mode up to 50kHz
High measurement resolution: 0.1mV (voltage), 0.1mA (current)
Dedicated battery test function
OCP test & remote sense measurement function
Short-circuit simulation function
Special CR mode for LED testing
Voltage & current ripple measurement function
Power-off parameter memory function
Storage capacity for up to 100 groups of test files
Standard RS232 / RS485 communication interfaces

SPECIFICATIONS

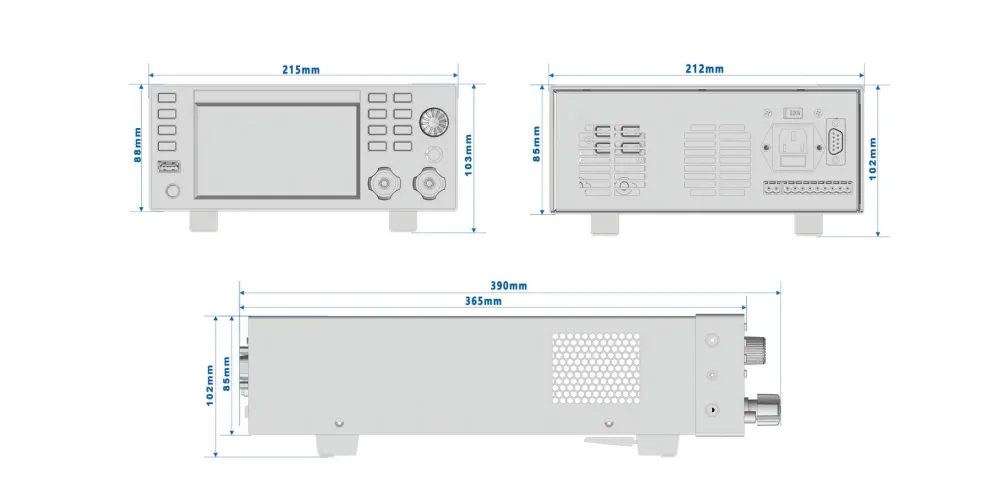

SIZE OF ELECTRONIC LOAD
